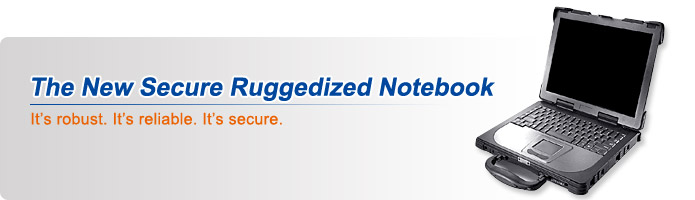

The Secure Ruggedized Notebook - the Mitac new M220 is the first industrial class notebook computer that has embedded Enova®'s X-Wall® LX real-time IDE cryptographic gateway to ensure the privacy and confidentiality of the entire disk content without performance degradation. The M220 exceeds the standards set by the military (810F, 410E) and industry (IP54), and is priced less than many of the competitors' offers. With a 1.4GHz Intel Dothan LV processor (Pentium M) with CentrinoT Mobile Technology, the M220 features performance, reliable operation, and wireless connection.

The M220 design is certified by IP54 and Mil-STD 810F. The Mil-STD 410E certification is optional. The M220 is engineered to survive the extreme use and needs of today's "on-the-go" road warriors in field service, utilities, construction, telecommunications, military, police, fire and emergency services (EMS), data collection in science, oil and gas exploration where wind-blown, heavy rain, three-foot drops off the back of a truck, and temperatures from -4 to +130?F may be encountered.

Hardware Security

Enova® X-Wall LX-40 safeguards entire drive volume via the NIST/CSE certified standard DES 40-bit hardware cryptographic engine. Higher encryption strength such as TDES 128/192-bit can be obtained via swapping the appropriate X-Wall LX and cryptographic key length. Unlike software-based encryption solutions, hardware based security offers hard security and platform compatibility without performance degradation. The entire drive volume including boot sector, file allocation table, operating system, temporarily and swap files is DES/TDES encrypted. There is no possibility that any clear text be left unprotected.

User’s pre-boot administrative password is converted into the “Cryptographic Key (or Secret Key)” which is sent to the X-Wall to enable the disk drive during power up or resume from the hibernation state. The “Secret Key” is erased after it is sent to the X-Wall to enable the drive. No places other than the X-Wall registers does the “Secret Key” exist. The new Secure Ruggedized Notebook provides unsurpassed security for your private and sensitive data.

Please reference to Gartner’s comments about using hardware security solution:

“Hardware is also not invulnerable to attack, but it generally requires much more sophisticated attackers with larger budgets than those that typically succeed against software-only security options. When information is sensitive, valuable or ‘must be trusted not to change’, hardware has to be part of the solution.”
Gartner Research Note COM-16-5309, 10 June 2002: “Software Security is Soft Security: Hardware is required”

Delivers Significant Performance Improvement

Unlike software based disk encryption, the X-Wall LX delivers unprecedented 1.6 giga bit per second bandwidth, which completely eliminates overheads/interrupts and offers real-time performance for the operations of encryption and decryption. The operation is totally transparent to users, whose regular computing behavior remains unchanged.

Reduces Total Cost of Ownership

Your Total Cost of Ownership is minimized as no software upgrades, patches are ever required to maintain the cryptographic functionalities. Beside, there is no changes whatsoever to your existing IT security infrastructure, which dramatically reduces your IT management overheads. Users of the new Secure Notebook require no training, as your password is your Secret Key to the entire disk drive.

Free to Dispose

When it's time to dispose a used computer, what would you normally do? Rewrite hard drive several times? Smash the hard drive with a hammer? Burn it? Or simply shred it? With X-Wall real-time encryption technology, you simply pull the KEY, be it a physical key token or a Password. As every bit and byte residing in the hard drive is strongly encrypted, there is no chance that your proprietary information will be left unprotected.

Specifications

CPU Intel Dothan LV Processor, 1.4 GHz, µ-FCBGA, 400MHz FSB, 2M L2 Cache
Core Logic Intel 855GME Chipset + ICH4-M
Memory Two 200-pin PC2100/ PC2700 DDR SODIMM sockets
Standard: 256MB DDR SDRAM, Max: 2 GB DDR SDRAM
VGA Controller Integrated in 855GME chipset, share system memory up to 64MB
Option: ATI M11 discrete VGA controller with 64MB memory
Display 14.1" TFT XGA (1024x768) / SXGA (1400x1050)
Option 15.0’’ TFT XGA / SXFA (1400x1050)
Optional Touch Screen
Option: Hi-Contrast solution
HDD Easily removable Including HDD encryption feature
Standard: 40GB; up to 60GB / 80GB
Option: HDD heater for low temperature (-20C support)
Bay 1 Easy swappable bay for CD-ROM/COMBO Drive / DVD Dual Recorder / 2nd Battery
Keyboard Water-proof membrane Keyboard, Rubber Keyboard, Back-light Rubber Keyboard
Pointing Device A touch-sensitive control pad with reseing rain drops
PCMCIA Type II x 2 or Type III x 1, CardBus support
Audio AC97 Rev. 2.3 support, compatible digital controller, build-in Stereo 2W speakers
I/O Port
Serial port X 1 DC Input
USB 2.0 x 2 RJ-45 x 1
(Support boot from USB optical drive, current up to 1A)
CRT port x 1 Microphone-in
PS/2 port Line-out
Parallel port x1 IR
DC input x 1 Kingston Lock Hole
RJ-45 x 1 Docking Port (POGO, hot docking)
Communication

Integrated 10/100 base-T Ethernet, 56kbps Modem
Optional GPS module wireless module from COM–GSM/GP
No interference between 4 antennas at the same time
Integrated Wireless LAN (Centrino platform)
Bluetooth module

Battery Main battery supports over 4 hours (w/o M11), Second battery supports over 2 hours
AC Adapter 90 Watts Universal or above, Input: 100-240V, 50/60Hz AC
Dimensions & Weight 328x 272 x 41 mm, 8.6 lbs (3.9kg)
Operating System Support Windows XP Pro / Windows 2000 Pro
Vehicle Docking Board
Serial Port x 2 Parallel Port x 1
BNC S-Video in for Video Capture USB Port x 2
POGO Docking Port DC-in x 1
Microphone-in x 1 Line-out x 1
Ignition sensor Support charge function via car adapter
Power on indicator
6W+6W external speaker output
Support GPS and WWAN pass through antenna
Office Docking Board
USB Port x 2 Parallel Port x 1
Serial Port x 2 Line-out x 1
Microphone-in x 1

Environmental Standard Main System

Temperature IEC 68-2-1, 2.14 / MIL-STD-810F, Method 501.4, 502.4
Operating: 0C to 55C (standard), -20C to 55C (optional with HDD Heather)
Shock IEC 68-2-27 / MIL-STD-810F, Method 516.5, Operating: 15g, 11ms, half sine wave, Non-operating: 50g, 11ms, half sine wave
Drop IEC 68-2-32 / MIL-STD-810F, Method 516.5, 3 feet height free drop on steel plate
Vibration IEC 68-2-6 / MIL-STD-810F, Method 514.5, Operating: 10~57.5Hz/0.075mm, 57.5~500Hz/1.0g, Sine wave

Available Manufacturers

Mitac Technology Corp. M220 Ruggedized Notebook
