Applications
Font size:


Listen to what our customer said:

The SecurePCI Adapter is a great product!! No degradation in computer performance and is completely transparent.
Kevin Routon, Washington State, USA

"I have been using two Secure PCI adapters for nine months now, and have not had a single issue with them. One is used in a workstation where fast disk access is essential, and I am pleased to say that I have not been able to notice any difference in performance between running with the Secure PCI adapter or running on an unencrypted drive. The second Secure PCI adapter is placed in a e-mail/web/file server which has been running non-stop for the last 9 months, except a few reboots to upgrade the kernel from time to time. I can highly recommend this product."
Michael Pedersen, Denmark

Features

- Real-time hardware based encryption with 1.6 Gigabit per second throughput and zero performance degradation
- NIST Certified DES 64-bit through TDES 192-bit encryption engine
- Automatic transparent operation encrypts entire hard drive bit-by-bit, including Boot Sector and OS
- Portable X-Wall® Secure Key for BIOS level user authentication and access control
- Operating System and software independent; does not require device drivers
- User friendly, simple, secure and elegant solution
- Securely protects publicly-accessible PCs where confidential information is stored
- Prevents unauthorized system/network access when used to secure PC boot drive

Product Overview

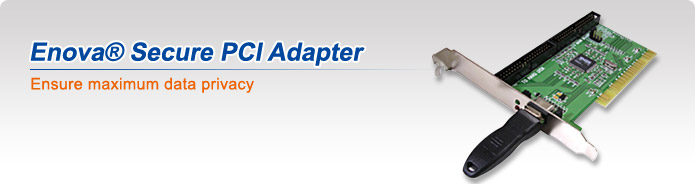

The Enova® Secure PCI Adapter combines the power of strong encryption with unprecedent throughput to protect sensitive data and credentials stored on PCs and servers. Once installed into an available PCI slot, the PCI Adapter automatically and transparently encrypts all data stored on the target hard drive.

Ensure maximum data privacy

The sensitive nature of confidential information is driving the need to secure data stored on all portable computer systems. Enova®'s innovative solution ensures multi-level privacy, confidentiality and authentication, allowing organizations to protect valuable assets, credentials and intellectual property which are exposed to significant risk of theft. Legal liability and the financial consequences associated with stolen confidential information require organizations to go to extreme lengths to protect their data.

Certain inhibiting factors have limited the widespread adoption of data encryption. Software solutions fail to address multiple concerns of performance degradation, user acceptance and ease-of-use. In contrast, hardware-based encryption technology is a much more secure solution offering simple and absolute data security which completely eliminates processor cycle interrupts and memory overhead. With Enova®'s transparent hardware based solution you are assured that your data and credentials are fully protected.

X-Wall Technology

Enova®'s X-Wall solution completely eliminates the traditional trade-offs between speed, convenience and security. X-Wall performs automatic and transparent hardware based "real-time" encryption at an unprecedented 1.6 Gigabit per second, requiring no user intervention- This ensures users never experience any performance degradation, with systems functioning at exactly the same speed as before X-Wall was installed.

The X-Wall Secure Key stores and protects the encryption key used by the X-Wall microchip to encrypt data. The correct X-Wall Secure Key must be inserted into the special key socket (present on X-Wall finished products) at system boot up to authenticate the user and authorize the operating system to load before granting access to data stored on the hard drive.

Because X-Wall operates at the physical hardware layer, it is compatible with all Operating Systems and requires no specific device drivers. Software upgrades, patches and bug-fixes are therefore no longer relevant.

X-Wall provides the complete security your data deserves. Utilizing only Government NIST approved DES (Data Encryption Standard) and TDES algorithms for assured security, X-Wall also allows you to choose the encryption key strength that best suits your particular requirements.

How does it work?

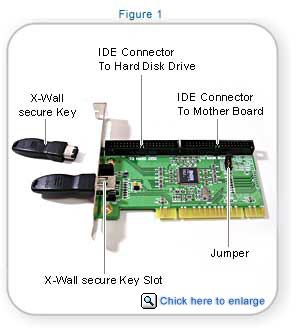

Please refer to the Figure 1. The installation of the Enova® Secure PCI Adapter is a snap. Find an available PCI slot. Connect your hard disk to the IDE connector labeled as "To Hard Disk". Connect the other IDE cable to the IDE connector labeled as "To Mother Board." Of course, you must determine the Master/Slave mode of your hard drive then adjust Jumper setting on the Secure PCI Adapter accordingly. The Enova® Secure PCI Adapter uses only power, ground and frame support from the PCI slot, thus the device driver isn't required.

You must use the supplied Secure Key token to "initialize" the hard drive, i.e., to "FDISK" then "FORMAT." Make sure you back up the important disk content prior to initializing your disk drive. As X-Wall encrypts your boot sector and partition table and the rest of drive volume, your entire drive content will be associated with the specific key token you use. Therefore, at every power up or resume from hibernation, the correct key token must be applied. Without it, the X-Walled hard drive will not be able to boot as the process of decryption won't occur accurately.

How to insert the key token?

We supply you the extension cord to avoid bending your knees. As illustrated in Figure 2, you must connect the other end of the extension cord to the Enova® Secure PCI Adapter key insert. You may remove the key token after the X-Walled drive has been properly recognized by your system.

Available Product List Part #
Enova® Secure PCI Adapter SE-64 SE-64A-SPA
Enova® Secure PCI Adapter LX-128 LX-128-SPA
Enova® Secure PCI Adapter LX-192 LX-192-SPA

Specifications

- SE is running at 1.1Gbit/sec with a maximum 137GB per drive support
- LX is running at 1.6Gbit/sec which supports more than 137GB per drive
- Encryption strengths from 40-bit to 192-bit
- Compatible with all IDE hard drives
- Compatible with all Operating Systems, no device drivers required
- Includes 2 X-Wall Secure Keys

Enova® Technology, a privately held company with its HQ in Hsin-Chu Science Park, Taiwan, Republic of China, specializes in the design of advanced real-time cryptographic solutions. Enova®’s innovative encryption technology satisfies the needs of Corporations, Government Agencies, Consumers and security-conscious users worldwide who demand absolute privacy and confidentiality of stored data and network credentials.

Available Manufacturers

Quick-Serv. Computer Co. Ltd. Security PCI Adapter Card
